Ein Artikel in hervorragendem Zustand, wie neu und ohne Gebrauchsspuren. Beim Artikel fehlt möglicherweise die Originalverpackung oder die Schutzverpackung oder die Originalverpackung ist vorhanden, aber nicht mehr versiegelt. Artikel mit Originalzubehör.
Produktinfos:
Nennleistung 24 kW
Energieeffizienzklasse: A
Fliessdruck 0,1 - 0,6 MPa
Wasseranschluss G 1/2"
Mindestabsicherung 24 kW = 35-40 A
Spannung 400 V 3 ~ 50 Hz
min. Leitungsquerschnitt 4 mm²
Bauart geschlossen
Nenndruck 0,6 MPa
Einschaltmenge 2,5 L/min.
max. Zulauftemperatur 20°C
Temperaturbereich 0°C - 55°C
Maße (HxBxT) 47,2 x 25,5 x 11,5 cm
Verpackungsmaße (HxBxT)50,0 x 30,0 x 16,5 cm
Für die Installation dieses Gerätes ist ein 400V Starkstromanschluss (Drei-Phasen-Wechselanschluss) notwendig, die Montage (Wasser/ und Elektroinstallation) sowie die Erstinbetriebnahme und die Wartung dieses Gerätes dürfen nur von einer Elektrofachkraft in Übereinstimmung mit den gültigen Vorschriften sowie entsprechend dieser Anweisung ausgeführt werden! In Garantiefällen gibt es ein Vor-Ort Kundendienst.
Product information:
Rated power 24 kW
Energy efficiency class: A
flow pressure 0,1 - 0,6 MPa
Water connection G 1/2
Minimum fuse protection 24 kW = 35-40 A
Voltage 400 V 3 ~ 50 Hz
min. Cable cross-section 4 mm²
Closed type
nominal pressure 0,6 MPa
Switch-on quantity 2,5 L/min.
max. inlet temperature 20°C
Temperature range 0°C - 55°C
Dimensions (HxWxD) 47,2 x 25,5 x 11,5 cm
Packaging dimensions (HxWxD)50,0 x 30,0 x 16,5 cm
For the installation of this device, a 400V power connection (three-phase alternating current connection) is required. The assembly (water and electrical installation) as well as the initial start-up and maintenance of this device may only be carried out by a qualified electrician in accordance with the valid regulations and in accordance with these instructions! In warranty cases there is an on-site customer service.
Article characteristics Hydrex21:
Rated power 21 kWEnergy efficiency class: A
Flow pressure 0.1 - 0.6 MPa
Water connection G 1/2
Minimum fuse protection 21 kW = 30-32 A
Voltage 400 V 3 ~ 50 Hz
Min. cable cross-section 4 mm²
Closed type
Nominal pressure 0,6 MPa
Switch-on flow rate 2,5 L/min.
Max. Inlet temperature 20°C
Temperature range 0°C - 55°C
Dimensions (HxWxD) 47,2 x 25,5 x 11,5 cm
Packaging dimensions (HxWxD)50.0 x 30.0 x 16.5 cm
For the installation of this device, a 400V power connection (three-phase alternating current connection) is required. The assembly (water and electrical installation) as well as the initial start-up and maintenance of this device may only be carried out by a qualified electrician in accordance with the valid regulations and in accordance with these instructions! In warranty cases there is an on-site customer service.
Product info:
Rated power 18 kWDaily power consumption: 1.227 kWhEnergy efficiency class: A
Flow pressure 0,1 - 0,6 MPa
Water connection G 1/2
Minimum fuse protection 18 kW = 26-32 A
Voltage 400 V 3 ~ 50 Hz
Min. cable cross-section 4 mm²
Closed type
Nominal pressure 0,6 MPa
Switch-on flow rate 2.5 L/min.
Max. Inlet temperature 20°C
Temperature range 0°C - 55°C
Dimensions (HxWxD) 47,2 x 25,5 x 11,5 cm
Packaging dimensions (HxWxD)50.0 x 30.0 x 16.5 cm
For the installation of this device, a 400V power connection (three-phase alternating current connection) is required. The assembly (water and electrical installation) as well as the initial start-up and maintenance of this device may only be carried out by a qualified electrician in accordance with the valid regulations and in accordance with these instructions! In warranty cases there is an on-site customer service.
Product information:Rated power 24 kWEnergy efficiency class: AFlow pressure 0,1 - 0,6 MPaWater connection G 1/2Minimum fuse protection 24 kW = 35-40 AVoltage 400 V 3 ~ 50 Hzmin. Cable cross-section 4 mm²Closed typenominal pressure 0,6 MPaSwitch-on quantity 2,5 L/min.max. inlet temperature 20°CTemperature range 0°C - 75°CDimensions (HxWxD) 47,2 x 25,5 x 11,5 cmPackaging dimensions (HxWxD)50,0 x 30,0 x 16,5 cm
Usage notice:A 400V power connection (three-phase alternating connection) is required for the installation of this appliance.The assembly (water/ and electrical installation) as well as the initial start-up and maintenance of this appliance may only be carried out by a qualified electrician in accordance with the applicable regulations as well as in accordance with these instructions! In warranty cases, on-site customer service is available.The installation of non-plug-in devices must be carried out by the network operator or by a registered specialist company, which will also assist you in obtaining the network operator's approval for the installation of the device.
Article information:Rated power 21 kWEnergy efficiency class: Aflow pressure 0,1 - 0,6 MPaWater connection G 1/2Minimum fuse protection 21 kW = 30-32 AVoltage 400 V 3 ~ 50 Hzmin. Cable cross-section 4 mm²Closed typenominal pressure 0,6 MPSwitch-on quantity 2.5 L/min.max. inlet temperature 20°CTemperature range 0°C - 75°CDimensions (HxWxD) 47,2 x 25,5 x 11,5 cmPackaging dimensions (HxWxD)50,0 x 30,0 x 16,5 cm
Usage notice:A 400V power connection (three-phase alternating connection) is required for the installation of this appliance.The assembly (water/ and electrical installation) as well as the initial start-up and maintenance of this appliance may only be carried out by a qualified electrician in accordance with the applicable regulations as well as in accordance with these instructions! In warranty cases, on-site customer service is available.The installation of non-plug-in devices must be carried out by the network operator or by a registered specialist company, which will also assist you in obtaining the network operator's approval for the installation of the device.
Article information:Rated power 18 kWEnergy efficiency class: Aflow pressure 0,1 - 0,6 MPaWater connection G 1/2Minimum fuse protection 18 kW = 26-32 AVoltage 400 V 3 ~ 50 Hzmin. Cable cross-section 4 mm²Closed typenominal pressure 0,6 MPSwitch-on quantity 2.5 L/min.max. inlet temperature 20°CTemperature range 0°C - 75°CDimensions (HxWxD) 47,2 x 25,5 x 11,5 cmPackaging dimensions (HxWxD)50,0 x 30,0 x 16,5 cm
Usage notice:A 400V power connection (three-phase alternating connection) is required for the installation of this appliance.The assembly (water/ and electrical installation) as well as the initial start-up and maintenance of this appliance may only be carried out by a qualified electrician in accordance with the applicable regulations as well as in accordance with these instructions! In warranty cases, on-site customer service is available.The installation of non-plug-in devices must be carried out by the network operator or by a registered specialist company, which will also assist you in obtaining the network operator's approval for the installation of the device.
Item Features:Model 3in1:The electronically controlled instantaneous water heater with automatic power voltage keeps the outlet temperature constant. This is independent of the inlet temperature up to the output limit. Thehot water outlet temperature can be adjusted continuouslyOperation:The appliance has a control panel with buttons for switching on or off, as well as arrow buttons for regulating the heat outputLoad profileSWarmwater preparation energy efficiency class:AWarmwater preparationenergyefficiency in %: 39,6When installed, the unit can be connected with a rated output of 18 / 21 / 24 kW.Technical data:Annual power consumption in kWh: 465Daily power consumption in kWh: 1,276Rated voltage in V-Hz: 400 3-50Rated power in kW: 18/21/24Fuse protection in A: 26/30/35Min. cable cross section (mm²): 6Type of construction: closedTemperature setting of the temperature controller (ex works) in C°: 40Temperature range (C°): 0-75Switch-on quantity (L/min.): 2.5max. inlet temperature (C°): 20Standstill consumption W/h: 1Protection class: IProtection class: IP24water connection: G 1/2max. permissible pressure Mpa: 0,6minimum flow pressure MPa: 0,1Hot water capacity (∆t=25C°) : 10.0 / 11.8 / 13.0 L/min.Dimensions:Dimensions HxWxD (mm) / Weight: 472 x 255 x 115 mm / 4.5 kg.Packaging dimensions HxWxD (mm) / weight: 500 x 300 x 165 mm / 6 kgImportant Information & Usage Notice:A 400V power connection (three-phase alternating connection) is required for the installation of this device, the assembly (water/ and electrical installation) as well as the initial start-up and maintenance of this device may only be carried out by a qualified electrician in accordance with the applicable regulations as well as in accordance with these instructions! In warranty cases there is an on-site customer service!The installation of non-plug-in devices must be carried out by the network operator or by a registered specialist company, which will also assist you in obtaining the network operator's approval for the installation of the device
Artikelinformationen:
Nennleistung 24 kW
Energieeffizienzklasse: A
Mindestfließdruck: 0,015 MPa
Wasseranschluss: R 1/2
Mindestabsicherung 24 kW = 40 A
Spannung 400 V ~ 50 Hz
Warmwasserleitung: 8 L/min
Bauart: geschlossen
Nenndruck: 1 MPa
Einschaltmenge 3 L/min.
max. Zulauftemperatur 55°C
Maße (HxBxT): 481 x 240 x 99 / 4,4 kg
Verpackungsmaße (HxBxT): 530 x 280 x 155 / 5 kg
Nutzungshinweis:
Für die Installation dieses Gerätes ist ein 400V Starkstromanschluss (Drei-Phasen-Wechselanschluss) notwendig, die Montage (Wasser/ und Elektroinstallation) sowie die Erstinbetriebnahme und die Wartung dieses Gerätes dürfen nur von einer Elektrofachkraft in Übereinstimmung mit den gültigen Vorschriften sowie entsprechend dieser Anweisung ausgeführt werden! In Garantiefällen gibt es ein Vor-Ort Kundendienst.
Die Installation nicht-steckerfertiger Geräte ist vom Netzbetreiber oder von einem eingetragenen Fachbetrieb vorzunehmen, der Ihnen auch bei der Einholung der Zustimmung des Netzbetreibers für die Installation des Gerätes behilflich ist
Artikelinformationen:
Nennleistung 18 kW
Energieeffizienzklasse: A
Mindestfließdruck: 0,015 MPa
Wasseranschluss: R 1/2
Mindestabsicherung 18 kW = 32 A
Spannung 400 V ~ 50 Hz
Warmwasserleitung: 8 L/min
Bauart: geschlossen
Nenndruck: 1 MPa
Einschaltmenge 3 L/min.
max. Zulauftemperatur 55°C
Maße (HxBxT): 481 x 240 x 99 / 4,4 kg
Verpackungsmaße (HxBxT): 530 x 280 x 155 / 5 kg
Nutzungshinweis:
Für die Installation dieses Gerätes ist ein 400V Starkstromanschluss (Drei-Phasen-Wechselanschluss) notwendig, die Montage (Wasser/ und Elektroinstallation) sowie die Erstinbetriebnahme und die Wartung dieses Gerätes dürfen nur von einer Elektrofachkraft in Übereinstimmung mit den gültigen Vorschriften sowie entsprechend dieser Anweisung ausgeführt werden! In Garantiefällen gibt es ein Vor-Ort Kundendienst.
Die Installation nicht-steckerfertiger Geräte ist vom Netzbetreiber oder von einem eingetragenen Fachbetrieb vorzunehmen, der Ihnen auch bei der Einholung der Zustimmung des Netzbetreibers für die Installation des Gerätes behilflich ist
Artikelinformationen:
Nennleistung 21 kW
Energieeffizienzklasse: A
Mindestfließdruck: 0,015 MPa
Wasseranschluss: R 1/2
Mindestabsicherung 21 kW = 32 A
Spannung 400 V ~ 50 Hz
Warmwasserleitung: 8 L/min
Bauart: geschlossen
Nenndruck: 1 MPa
Einschaltmenge 3 L/min.
max. Zulauftemperatur 55°C
Maße (HxBxT): 481 x 240 x 99 / 4,4 kg
Verpackungsmaße (HxBxT): 530 x 280 x 155 / 5 kg
Nutzungshinweis:
Für die Installation dieses Gerätes ist ein 400V Starkstromanschluss (Drei-Phasen-Wechselanschluss) notwendig, die Montage (Wasser/ und Elektroinstallation) sowie die Erstinbetriebnahme und die Wartung dieses Gerätes dürfen nur von einer Elektrofachkraft in Übereinstimmung mit den gültigen Vorschriften sowie entsprechend dieser Anweisung ausgeführt werden! In Garantiefällen gibt es ein Vor-Ort Kundendienst.
Die Installation nicht-steckerfertiger Geräte ist vom Netzbetreiber oder von einem eingetragenen Fachbetrieb vorzunehmen, der Ihnen auch bei der Einholung der Zustimmung des Netzbetreibers für die Installation des Gerätes behilflich ist
Technische Daten:
Energieeffizienzklasse (Skala A+-F): A
Heizleistung: 21 kW
Leistungsregelung: elektronisch gesteuert
Warmwasser-Dauerleistung Δt 30K: 8 l/min
Spannungsversorgung: 400V/50Hz
Elektrischer Anschluss: Kabel
Schutzart: IP25
Max Einlauftemperatur: 55°C
Temperatur Warmwasser (Min / Max): 30-55°C
Maße unverpackt (Höhe / Breite / Tiefe): 481 / 240 / 99 mm
Gewicht unverpackt: 4,4 Kg
Anschluss Kaltwasser,Warmwasser: R ½

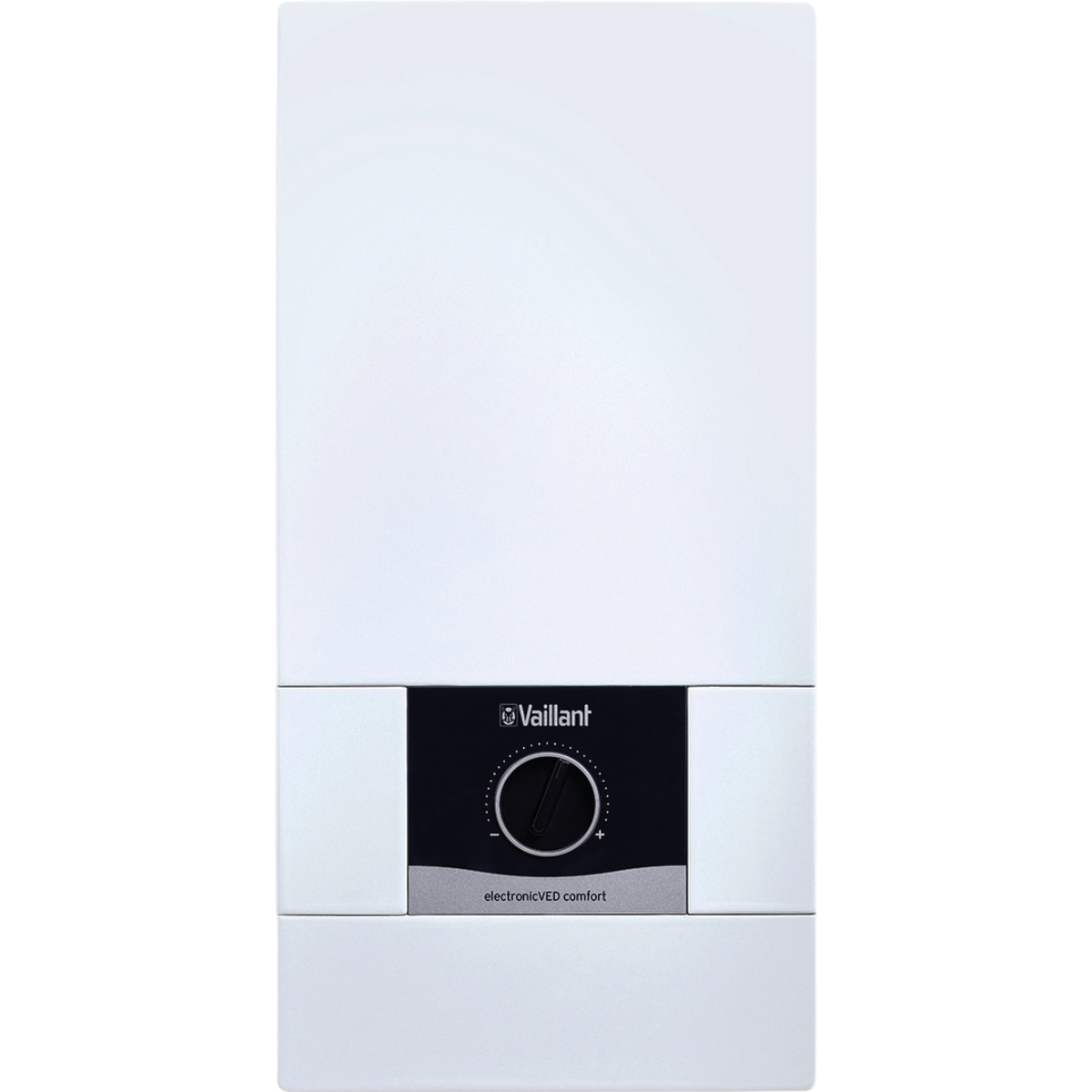

Der electronicVED comfort sorgt stets für einen zuverlässigen Warmwasserkomfort und ist die optimale Lösung für alle, die eine besonders simple Bedienung bevorzugen:
Einfach am Drehregler die gewünschte Temperatur zwischen 30°C und 55°C stufenlos einstellen.
Ein klarer Vorteil gegenüber hydraulischen Durchlauferhitzern, die das Wasser stets bis zur Leistungsgrenze erhitzen – und Sie dann kaltes Wasser beimischen müssen, um es auf die gewünschte Temperatur wieder abzukühlen.
Besonders effizient: dezentrale Warmwasserversorgung
Unsere elektronischen Durchlauferhitzer überzeugen durch ihre hohe Wirtschaftlichkeit, da das Wasser nahe der Zapfstelle erwärmt wird. So wird nur dann Strom verbraucht, wenn Sie warmes Wasser benötigen.
Durch eine dezentrale Warmwasserversorgung werden Speicher- oder Zirkulationsleitungsverluste vermieden. Durch die kurzen Leitungswege werden Wärmeverluste außerdem auf ein Minimum reduziert, während die Trinkwasserhygiene gleichzeitig erhöht wird.
Warmwasser nach Wunsch und mit hohem Komfort
Für ein entspanntes Bad oder eine angenehme Dusche braucht es vor allem eins: konstant warmes Wasser in der perfekten Temperatur. Dank gradgenauer Auslauftemperaturen und einer besonders zuverlässigen Warmwasserbereitung bieten Ihnen unsere elektronischen Durchlauferhitzer electronicVED comfort und pure genau den Wasserkomfort, den sie suchen – ohne Schwankungen im Wasserdruck und unfreiwillige Kneippkuren.
Modernste Technik in ansprechendem Design
Das moderne, flache Design unserer Vaillant electronicVED Geräte fügt sich harmonisch in alle Bäder und Küchen ein. Und damit Sie lange Freude daran haben, setzen wir nicht nur bei der Technik auf langlebige Produktmaterialien, sondern auch beim Gehäuse: Die Gerätehauben aller electronicVEDs bestehen aus UV-beständigem ABS-Kunststoff, der ein frühzeitiges Vergilben verhindert.
Ideal für Modernisierung
Für die klassische Modernisierung im Ein- oder Zweifamilienhaus ist der electronicVED comfort perfekt geeignet. Schließlich bieten er Ihnen nicht nur einen deutlich besseren Warmwasserkomfort als ältere hydraulische Durchlauferhitzer, sie sparen im Vergleich dazu auch bis zu 30 Prozent Strom und Wasserkosten – was ihr gutes Preis-Leistungs-Verhältnis zusätzlich erhöht.
Der electronicVED pure eignet sich aufgrund seiner zuverlässigen Warmwasserbereitung für eine Etagenwohnung und ist so eine kostengünstige Alternative.
€399.90*
€569.00*(29.72% saved)
